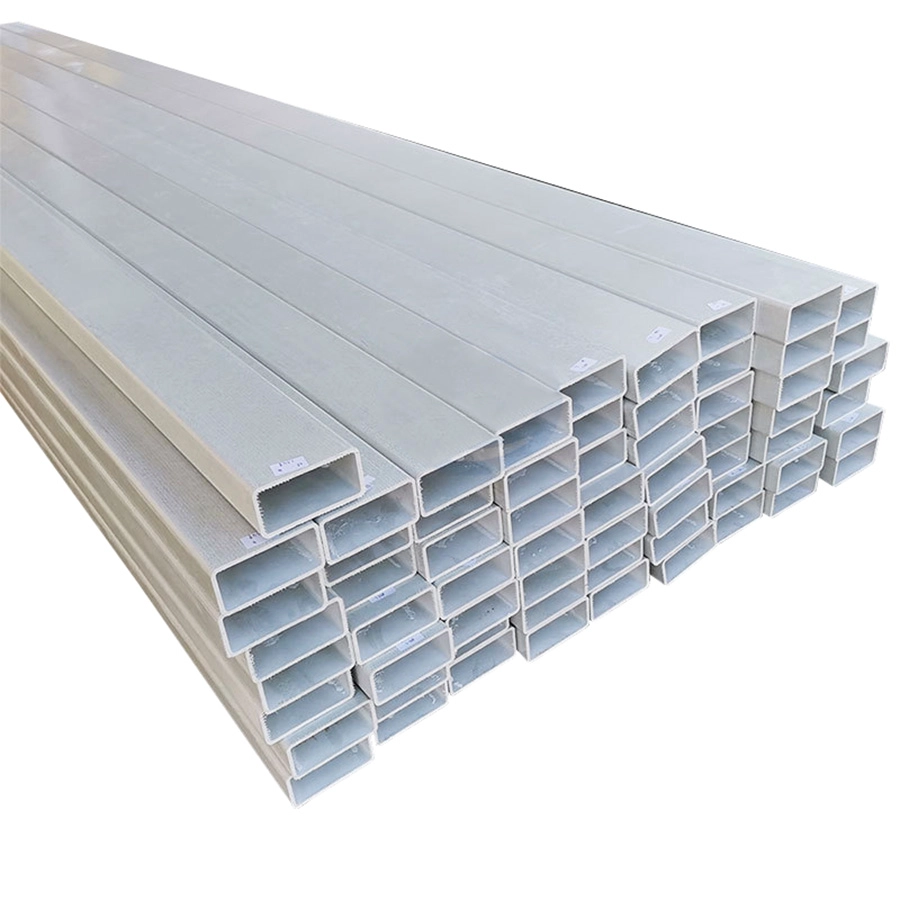

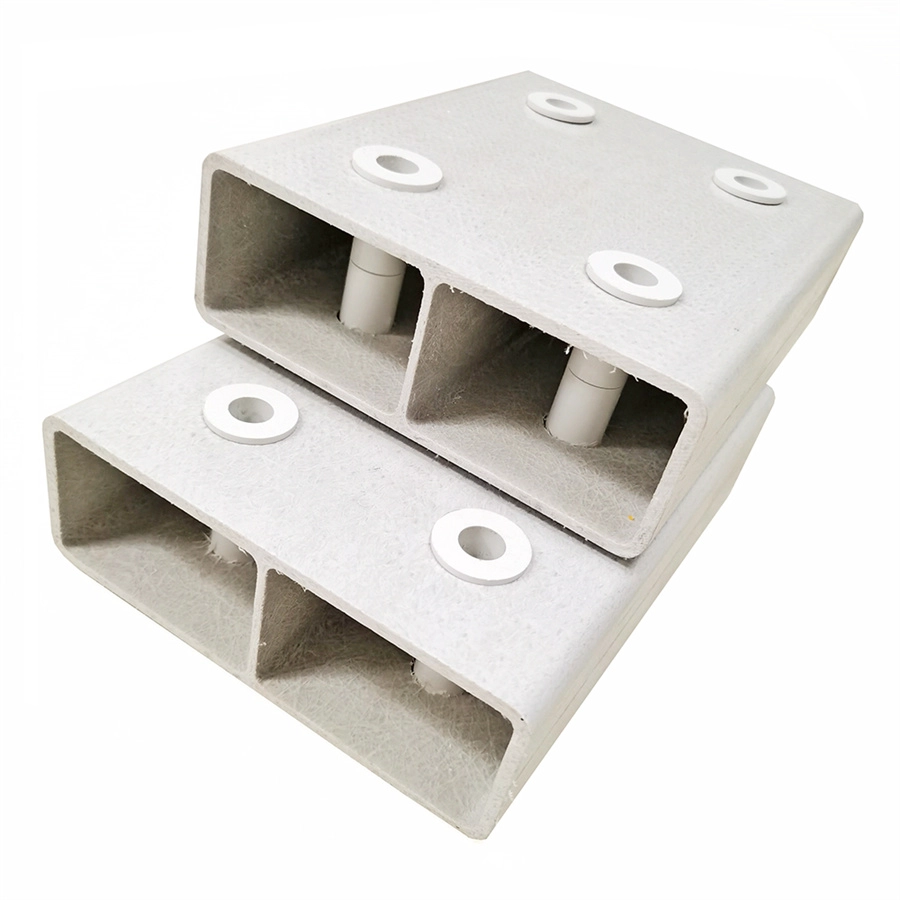

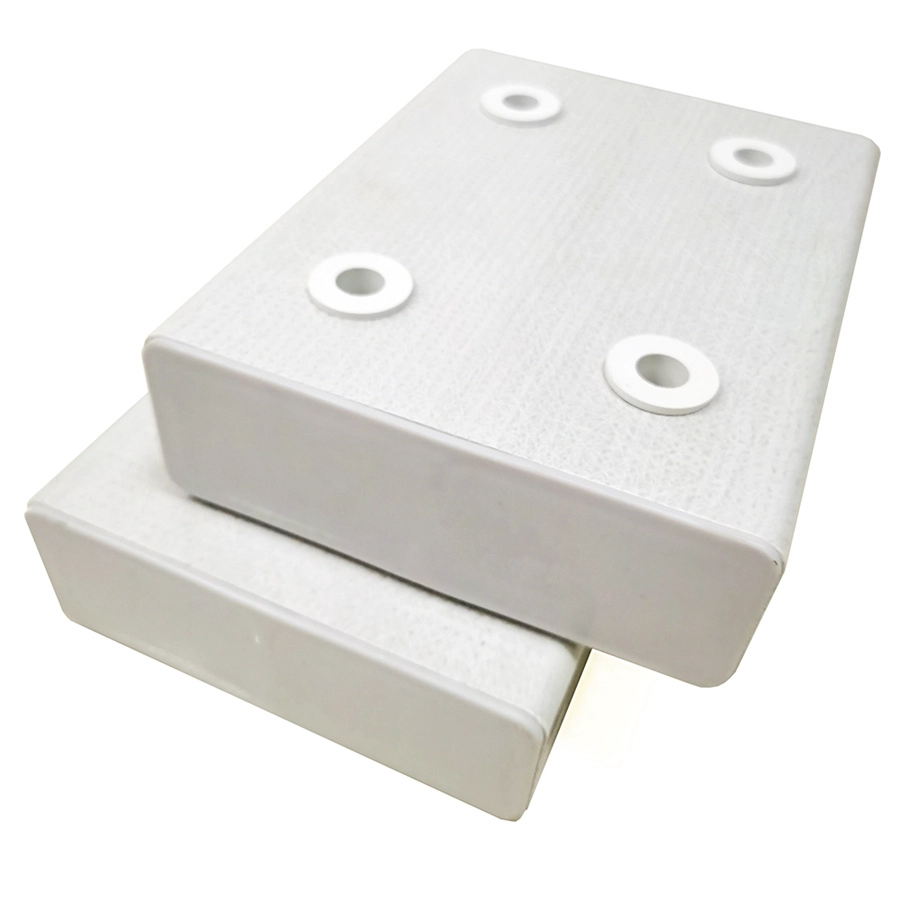

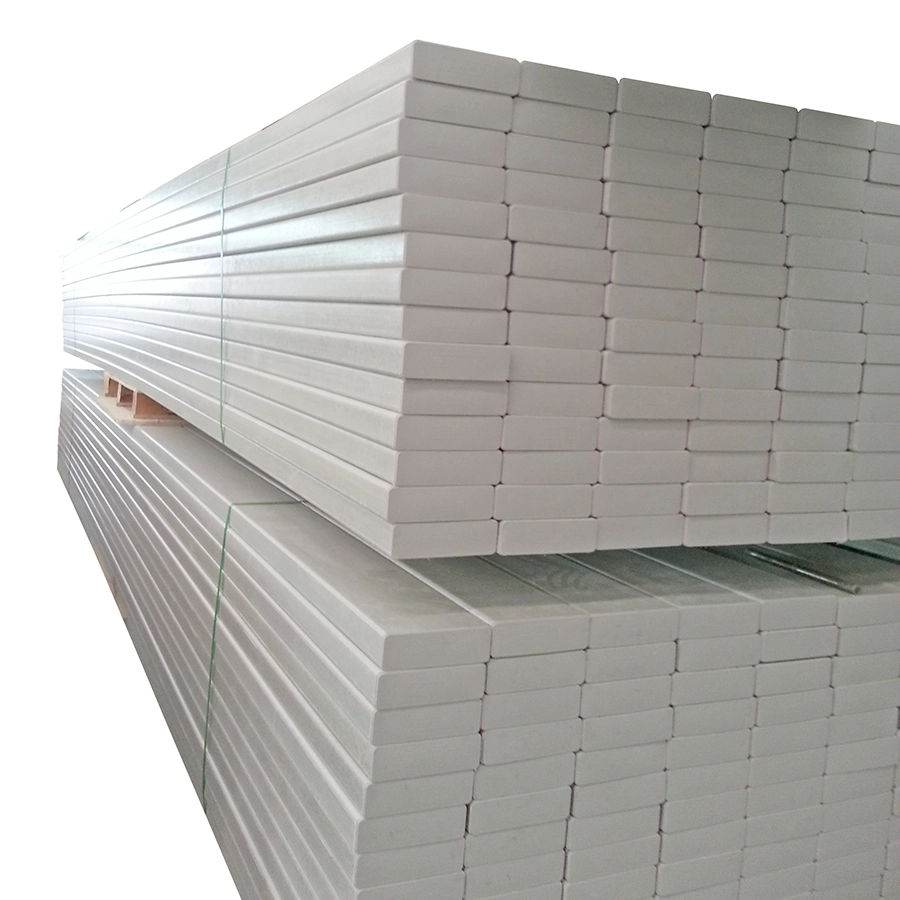

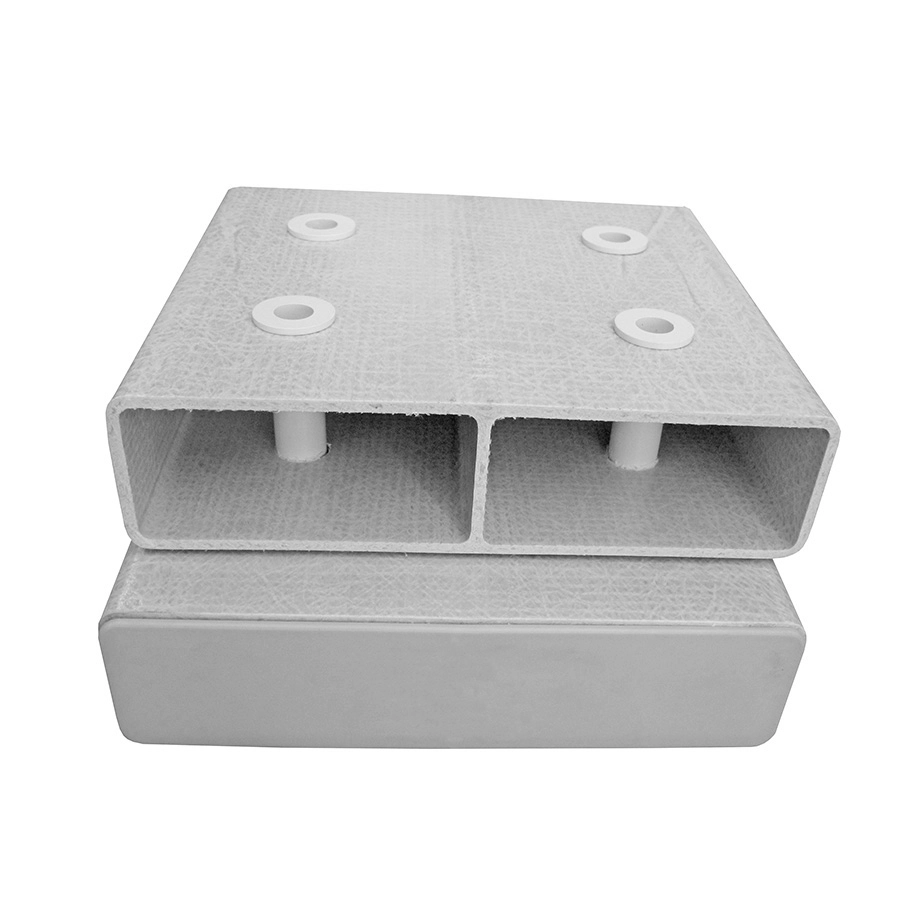

High Strength Pultruded Fiberglass Reinforced Plastic FRP GRP Purlin for Fertilizer Factory Building
- Width: 110mm, 160mm, 220mm
- Height: 55mm
- Length: customized
- Color: customized
- Shape: Rectangle tube
- Accessories: end caps, bolt sleeves
High Strength Pultruded Fiberglass Reinforced Plastic FRP GRP Purlin for Fertilizer Factory Building
FRP Purlin
It is one of fiberglass reinforced plastic pultruded profiles, which continuously formed by high-temperature heating with reinforcing materials such as glass fiber rovings, continuous mats, stitched mats, surface mats, and other matrix materials such as unsaturated polyester resins, PU resins etc. (customized by china frp purlin manufacturers)
FRP Purlin Advantages
- High strength: reach the strength of steel
- Corrosion resistance: resistance to "acid, alkali and salt spray"
- Suitable for high temperature and high humidity environment
- Long-term use temperature: -30~90℃
- Good resilience: the preferred material for earthquake and typhoon resistance
For more fiberglass putruded profiles, please click china grp purlin suppliers
FRP Purlin Specifications
china fiberglass purlin factories supply following existing moles of FRP purline, customized molds also available.
| YP110 | YP160 | YP220 | HYP160 |
 |
 |
 |
 |
 |
 |
 |
 |
FRP Purlin Data Sheet
| Items | YP110, YP160, YP220 | HYP160 |
| Resin System | Unsaturated Polyester | PU Resin |
| Tensile Strength | 250Mpa | 750Mpa |
| Flexural Strength | 350Mpa | 800Mpa |
| Barcol Hardness | 45 | 65 |
| Izod Impact | 300kJ/m² | 450kJ/m² |
| Thermal Expansion | 28um/m.℃ | 28um/m.℃ |
| Water Absorption | 0.16%/24hrs@25℃ | 0.05%/24hrs@25℃ |
| Gravity | 1.9g/cm3 | 2.1g/cm3 |
| Leakage index | 600CTI | 600CTI |
| Withstand voltage | 3000V/MM | 3000V/MM |
FRP Purlin Applications
Roof purlin and wall purlin of Fertilizer plant, coking plant, chemical smelting plant, pickling workshop, alumina workshop etc
Tel:+86 18566763609
Wechat:+86 18566763609
Contact Person:Alfred Shu
